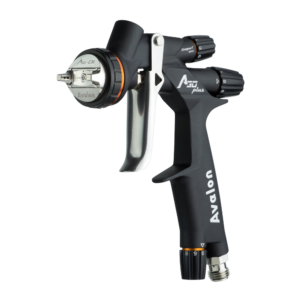

Avalon A30 Plus Mini/Compact - 1.0mm Spray Gun For Precision Basecoat And Clearcoat

Avalon A30 Plus Compact/Mini Spray Gun For Precision Basecoat And Clearcoat — precision that keeps every pass under control

The blend is done, the panel is masked, and all that remains is a smooth coat of color. But a clumsy spray gun makes every pass feel risky. Basecoat lands too heavy in one area, too dry in the next, and what should be a clean repair turns into extra sanding, extra polishing, and another delay before delivery.

You lower the pressure, change your distance, and feather the trigger, hoping the fan will finally behave. Instead, the metallic starts mottling, the clear edge builds unevenly, and the compact repair becomes harder to hide with every pass. When precision matters, you need a lightweight gun that responds instantly and lays material exactly where you intend most.

Avalon A30 Plus Spray Gun For Precision Basecoat And Clearcoat - Key features

The A30 Plus Compact/Mini uses a lightweight, compact body designed for close-range control, making it easier to position around edges, curves, and tighter repair areas. Avalon highlights its fine, precise atomization, low air consumption, highly uniform spray pattern, and the added flexibility of multiple air cap options with a wide range of nozzle sizes for more tailored spray behavior.

It is ideal for precision basecoat and clearcoat work, from small touch-ups to full automotive painting, and even for spraying objects of different sizes. In real shop use, that means one gun can handle a mirror cap refinish, a bumper edge repair, or a controlled clearcoat pass on a smaller panel without feeling oversized or wasteful.

Technical features of Avalon A30 Plus Spray Gun For Precision Basecoat And Clearcoat

In the uploaded solvent basecoat and clearcoat data sheet, the A30 Plus is tested with 0.8, 1.0, 1.2, and 1.3 mm nozzle options using Ti1, CH, and FX1 air caps. Across those configurations, pattern length ranges from 18 to 29 cm, while fluid flow runs from 112 to 225 ml/min, giving painters a useful spread between tighter detail work and broader, more productive coverage.

Air consumption varies by setup from 180 to 235 L/min, and the sheet recommends a compressor above 1.5 kW (2 HP). The gun is also listed at just 260 g, which helps reduce fatigue during detailed basecoat work, controlled clear application, and repeated passes on smaller panels where hand stability matters most.

• 🎯 Fine atomization: built for precise, even application in both basecoat and clearcoat work.
• 💨 Air consumption range: 180 to 235 L/min depending on the air cap and setup.
• 🔩 Nozzle sizes: 0.8 / 1.0 / 1.2 / 1.3 mm.
• 🧩 Air cap options: Ti1, CH, and FX1 for different spray behaviors.
• 📏 Pattern length range: 18 to 29 cm depending on coating type and configuration.
• 🧪 Fluid flow range: 112 to 225 ml/min across the tested setups.
• 🪶 Lightweight handling: 260 g with a recommended compressor above 1.5 kW (2 HP).

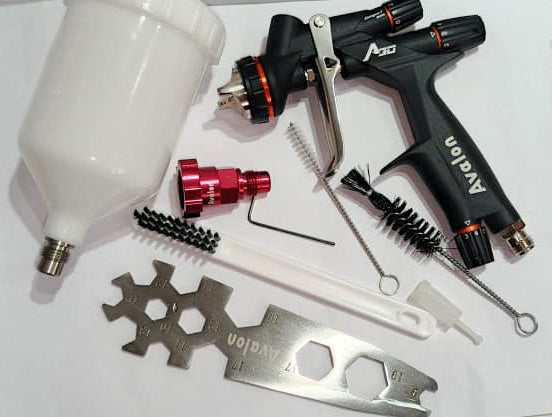

What is included:

• 200cc Cup
• Air regulator
• PPS Adapter
• Maintenance tools
• Manual

The table below summarizes the uploaded basecoat and clearcoat test data for the A30 Plus.

These figures come directly from the uploaded solvent basecoat and clearcoat data sheet, tested at 27 °C and 42% humidity.

Return Policy

Return it within 30 days from the date of delivery. Product must be unboxed, new. Please contact us at sales@avsprayguns.com or call 786-704-9612 to initiate your return request

Is the Avalon A30 Plus Spray Gun original?

Yes. AV Spray Guns identifies itself as an authorized distributor of AVALON AIR TOOLS Co., Ltd. in the United States, and its About page states that Avalon spray guns are manufactured in Taiwan. That gives this model a clear commercial origin and adds confidence in the product’s authenticity, support channel, and long-term parts availability.

Frequently Asked Questions (F.A.Q)

You are making a smart choice if you want cleaner control, finer atomization, and a more versatile tool for detailed refinishing work. If you still have questions before buying, the answers below will help you understand how this A30 Plus fits into real basecoat and clearcoat jobs.

Is the A30 Plus only for small touch-ups?

No. Avalon says the A30 Plus is suitable for a wide range of applications, from small touch-ups to full automotive painting, and also for spraying objects of various sizes. That makes it more flexible than a gun that is limited strictly to tiny repair zones.

Which nozzle size should I choose for more precise work?

For finer, lighter delivery, the 0.8 mm setup is the most restrained option in the data sheet at 112 ml/min. As you move to 1.0, 1.2, and 1.3 mm, fluid flow increases, making those sizes better suited when you want broader coverage or faster material build.

Which setup gives the widest basecoat fan?

Among the uploaded basecoat test results, the 1.3 mm CH setup produces the widest pattern at 29 cm by 9 cm. The 1.2 mm CH and 1.0 mm CH setups also offer broad fans, so they are strong choices when you want more productive coverage without stepping into a larger full-size gun.

What compressor should I run with this spray gun?

The uploaded data sheet recommends a compressor above 1.5 kW, or 2 HP. That gives the A30 Plus enough air supply for its tested range of 180 to 235 L/min, depending on the selected cap and nozzle combination.

Is it a good choice for clearcoat as well as basecoat?

Yes. The uploaded sheet includes dedicated clearcoat testing data alongside basecoat testing data, and the official product page presents the A30 Plus as a versatile gun for a wide range of painting applications. That combination supports it as a real dual-purpose option for both color and clear work.

How heavy is the A30 Plus during long detail sessions?

The data sheet lists the gun at 260 g, or 0.57 lb. That low weight is one of the reasons it feels easier to control during repeated passes, edge work, and smaller refinishing jobs where hand comfort directly affects consistency.
