Avalon A-60 - MP eXtreme 1.3mm Spray Gun – U-Split Tip – Faster base and clear without fighting the fan

Every basecoat job feels simple until the gun starts fighting the painter instead of helping. He chases coverage across a door, adjusts his overlap, then watches dry edges, patchy metallic laydown, and extra overspray creep in anyway. Another pass, another correction, another wasted mix. The problem is not the material or the hands behind it. It is the previous setup slowing everything down.

When clear coat follows, the pressure gets worse because the finish remembers every mistake. He tries moving slower, spraying wetter, and compensating with technique, but the old tool keeps demanding more time and more material to look acceptable. That frustration belongs to the gun he used before. The solution starts where speed, control, and finish quality finally work together.

Avalon A-60 - UMP 1.3mm - eXtreme Spray Gun – U-Split Tip - Main features

The Avalon A-60 UMP eXtreme 1.3 mm is built around a lightweight forged body with a stainless fluid path and quick-release cup, so it stays easier to handle, easier to clean, and easier to keep productive through long refinishing sessions. AV Spray Guns also highlights the patented U-Split tip, while Avalon’s official UMP page describes a new airflow system and slight U-groove nozzle design that refine airflow before the spray fan is formed.

For actual shop use, this 1.3 mm setup is the version AV Spray Guns assigns to base coat and clear. That makes it a strong fit for painters who want quicker panel coverage than a slower setup, but still need finer control, smoother distribution, and less wasted material on doors, fenders, hoods, bumpers, and blend areas where consistency matters from edge to edge.

Technical features of Avalon A-60 - MP eXtreme Spray Gun – U-Split Tip 1.3 mm

The A60 eXtreme UMP uses a new airflow system and a  U-groove nozzle design that pre-atomize paint before fan formation, helping produce a finer and more consistent spray pattern. The official UMP page also says the pattern stays evenly distributed from the center to the edges and that the design keeps air consumption relatively low at about 300 L/min -  MP is the medium-pressure member of the A-60 family aimed at speed and mirror-smooth results through optimized air distribution.

For the 1.3 mm nozzle specifically, AV Spray Guns’ published UMP nozzle selector identifies it as the base coat and clear option. Avalon’s official datatable lists the UMP 1.3 mm at 29 PSI inlet pressure, 20 cm spraying distance, 32 cm (12.6 in.) pattern length, 9 cm (3.5 in.) pattern width, 290 L/min (10.2 CFM) max air consumption, 240 ml/min fluid flow, and a minimum 2.2 kW (3 HP) compressor. The AV Spray Guns UMP product page also lists a 600 cc gravity cup, 1/4" NPS air inlet, regulator, cleaning kit, multi-tool, spare seals, and wrench as part of the pro kit.

• 🎯 1.3 mm nozzle for base coat and clear gives this version its strongest fit in everyday refinishing work where finish quality and speed have to coexist.
• 🌬️ Medium-pressure UMP design is positioned by AV Spray Guns for speed with mirror-smooth results through optimized air distribution.
• 🧪 Patented U-Split tip is promoted by AV Spray Guns for dual atomization, finer mist, and less bounce-back.
• 📏 32 cm (12.6 in.) pattern length from Avalon’s official datatable supports wider, steadier coverage on panels.
• ⚙️ 290 L/min (10.2 CFM) max air consumption helps keep the gun efficient without demanding oversized air supply.
• 🛢️ 240 ml/min fluid flow gives painters controlled material delivery for base and clear applications.
• 🔩 1/4" NPS air inlet and 600 cc cup support easy integration into common shop setups.

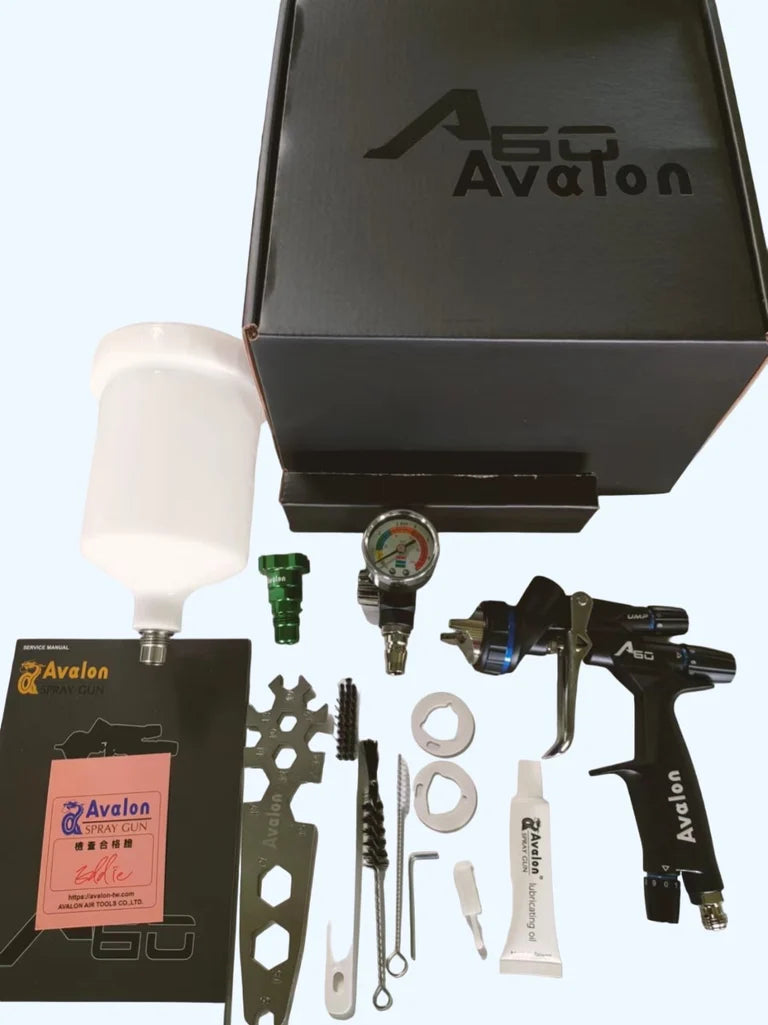

• 🧰 Complete pro kit included with regulator, cleaning kit, multi-tool, PPS Adaptor.

Return Policy - Spray with confidence, risk-free

Return it within 30 days of delivery. The spray gun must be sent back clean, unopened, with the original accessories, manuals, and packaging. Refunds are typically issued after inspection, with outbound shipping excluded; defective, damaged, or incorrect shipments qualify for a full-resolution solution according to the store’s policy.

Frequently Asked Questions (F.A.Q)

You’re making a smart move choosing a medium-pressure gun designed for real shop speed and cleaner finishes. If you still have questions before ordering, here are clear answers to help you decide with total confidence.

Why choose the eXtreme version over the standard Avalon A-60 MP?

The eXtreme version is the upgraded option for painters who want better atomization, a more even spray pattern, and less overspray. Avalon says it uses a new airflow system and a U-groove nozzle design to create a finer, more controlled spray. The standard A-60 MP is still a solid medium-pressure gun, but the eXtreme is the better choice if you want more refined finish quality and better material efficiency.

What is the 1.3 mm MP version best for?

The 1.3 mm MP setup as the option for base coat and clear. That makes it the most natural fit for painters who want better speed than a slower setup while keeping enough control for smooth, consistent refinishing on full panels and repair sections.

What makes the MP version different from the other A-60 systems?

The MP is described as the medium-pressure option that delivers speed and mirror-smooth results through optimized air distribution. By comparison, the HTE is presented around transfer efficiency and paint conservation, while the HVLP focuses on low-pressure operation and reduced bounce-back.

Does this spray gun help reduce overspray and wasted paint?

Yes. Avalon’s official MP page says the optimized paint transfer efficiency helps reduce overspray and material waste, and AV Spray Guns promotes the patented U-Split tip for finer mist and less bounce-back. Those two points speak directly to painters trying to get cleaner results without burning through extra material.

What air supply does the 1.3 mm UMP need?

Avalon’s official datatable lists the UMP 1.3 mm at 290 L/min, or 10.2 CFM, with a minimum 2.2 kW, or 3 HP, compressor. The same datatable lists 29 PSI inlet pressure, which gives buyers a concrete baseline for checking compressor compatibility before ordering.

How does shipping work on AV Spray Guns?

AV Spray Guns offers free standard shipping on all orders to the contiguous 48 states, with typical processing in 1 to 3 business days and estimated delivery in 3 to 7 business days after shipment.

What if I need help choosing or want to return the gun?

AV Spray Guns says customers can contact sales@avsprayguns.com or call (786) 704-9612, Monday through Friday, 9 a.m. to 5 p.m. EST, for help with nozzle sizes, setup tips, or orders. If the gun is not the right fit, the store’s refund policy says returns can be started within 45 days of delivery under its pilot-test program.
