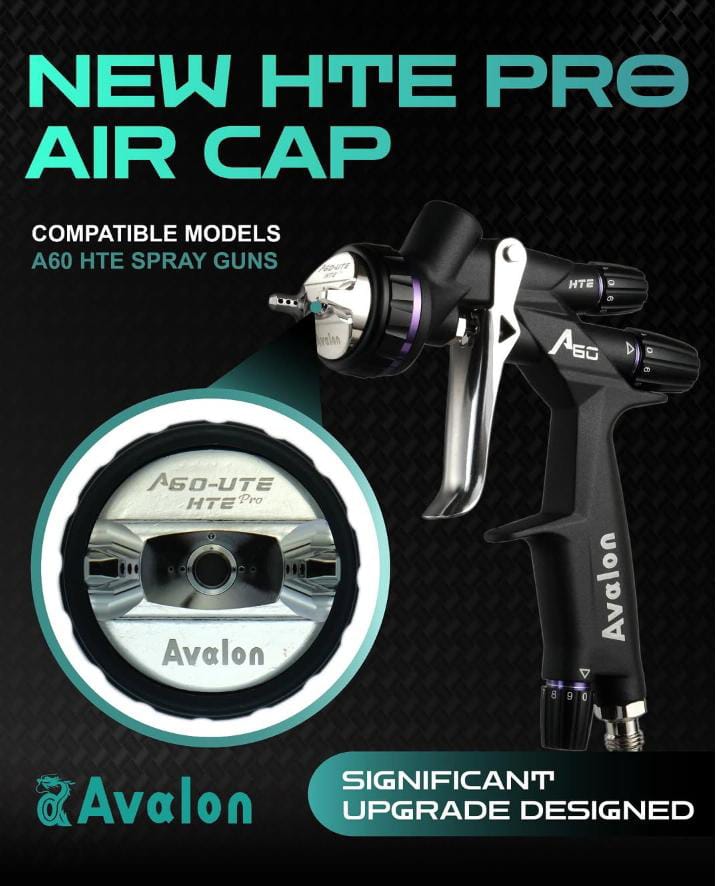

  • HTE spray gun. Air caps
  • HTE Specifications. Avalon Spray Guns
  • Avalon Spray Gun. HTE
  • A-30 mini spray gun 256g lightweight A-30 touch-up spray pattern on car door
1 12

My Store

Avalon A-60 HTE Spray Gun – U-Split Tip, 1.2, 1.3, 1.4, 1.5 mm | Extreme Transfer Technology

Avalon A-60 HTE Spray Gun – U-Split Tip, 1.2, 1.3, 1.4, 1.5 mm | Extreme Transfer Technology

$598.00 USD
$598.00 USD
Sale Sold out
Shipping calculated at checkout.
Nozzle Size

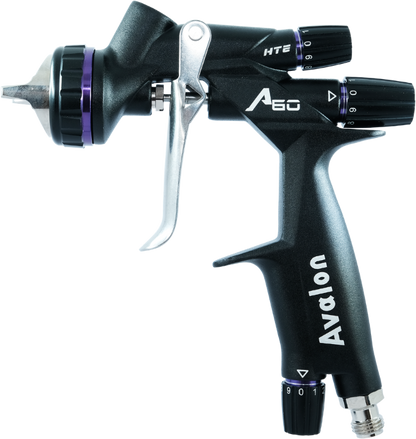

Avalon A-60 HTE Spray Gun –  eXtreme Transfer Efficiency



Avalon Exclusive: Patented U-Split Tip. Benefits: Dual Atomization for 20% finer mist, less bounce-back.





Extreme paint savings — HTE technology with 1.2, 1.3, 1.4, or 1.5 mm nozzles. Pro-grade finish on base, clear, primer, and high-build.





Why the A-60 HTE Wins Jobs

  • Extreme transfer: Less waste, lower VOCs, EPA-compliant

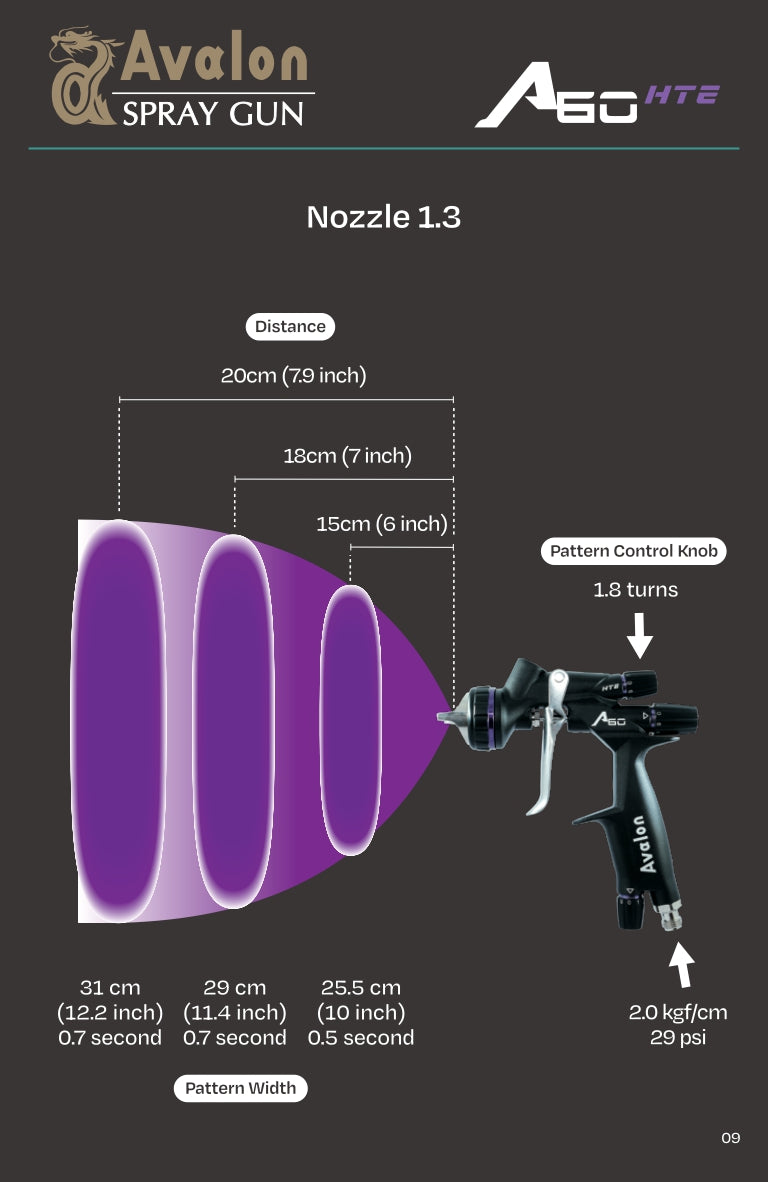

  • Up to 14" wide fan: Flawless coverage, no orange peel
  • 386g forged body: Light, balanced, all-day comfort
  • 3-min cleanup: Stainless fluid path + quick-release cup.
  • Patented U-shaped Split Tip

    Splits airflow for dual atomization—finer droplets, 15-20% better transfer.





Select Your Nozzle

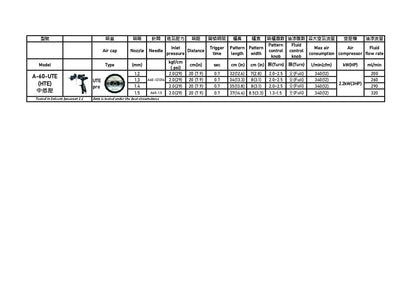

Nozzle Best For Pattern Lenght Air Consumption Flow Rate
1.2 mm  Metallics & pearls 12.6" (32 cm) 340 L/m 12 CFM 200 ml/min
1.3 mm  Base coat & clear 13.3" (34 cm) 340 L/m 12 CFM 260 ml/min
1.4 mm Clear coat & light primer 13.8" (35 cm) 340 L/m 12 CFM 290 ml/min
1.5 mm Primer & high-build 14.6" (37 cm) 340 L/m 12 CFM 320 ml/min





Complete HTE Pro Kit

  • A-60 HTE Spray Gun
  • 600 cc  gravity cup
  • Air regulator + gauge
  • Cleaning kit & multi-tool
  • Spare seals & wrench
  • All nozzles in stock

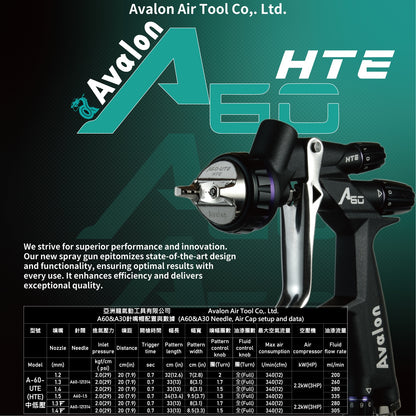

Tech Specs

  • Weight: 368 g (0.811 lb)
  • Air Inlet: 1/4" NPS
  • Pressure: 25–29 PSI
  • Min Compressor: 3 HP
  • Cup: 600 ml





Free USA shipping • 100% genuine Avalon • Full spare parts support
