Avalon A60 eXtreme HTE 1.4 mm Spray Gun – Professional High-Transfer Kit

$599.99

Avalon A60 eXtreme HTE 1.4 mm Spray Gun – Professional High-Transfer Kit

Name: Avalon A60 eXtreme HTE 1.4mm Spray Gun | AV Spray Guns
Brand: AV Spray Guns
SKU: 51284562772266
Price: 599.99 USD
Availability: InStock

$599.99

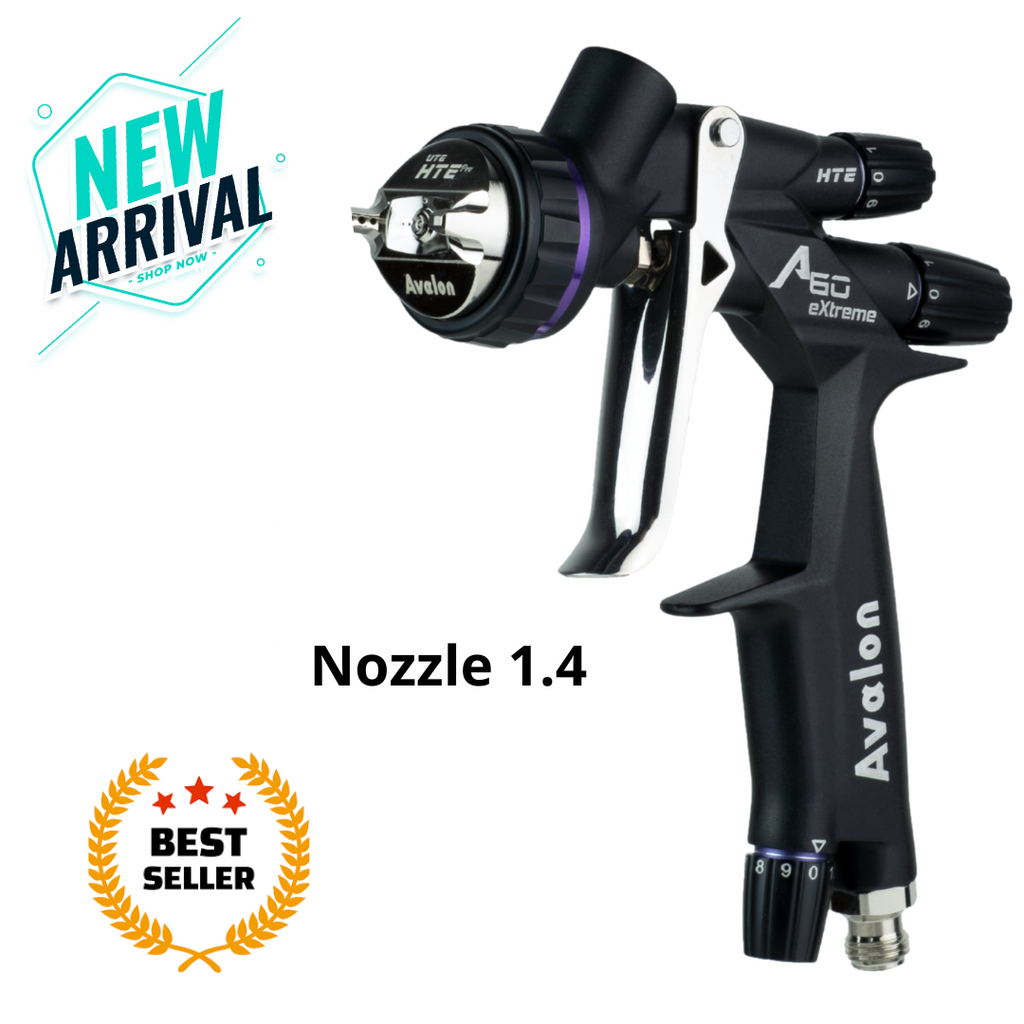

A60 eXtreme HTE 1.4 mm – Full-Size Professional Spray Gun for High Efficiency

The Avalon A60 eXtreme HTE 1.4 mm (UTE Pro) is a premium full-size professional spray gun designed for painters who demand high transfer efficiency, excellent atomization, and strong material flow on medium to large jobs.

Complete Professional Kit Includes:

Air regulator
Maintenance tools
600 cc gravity feed cup
PPS adapter

Engineered for Performance & Comfort:

Full-size design with 360 g (12.7 oz) weight for balanced control

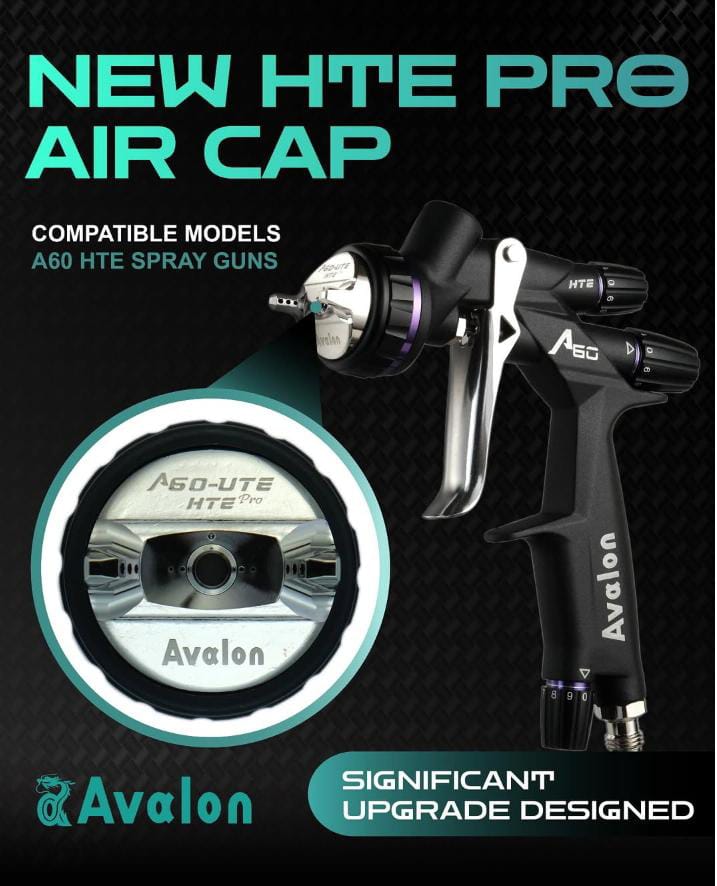

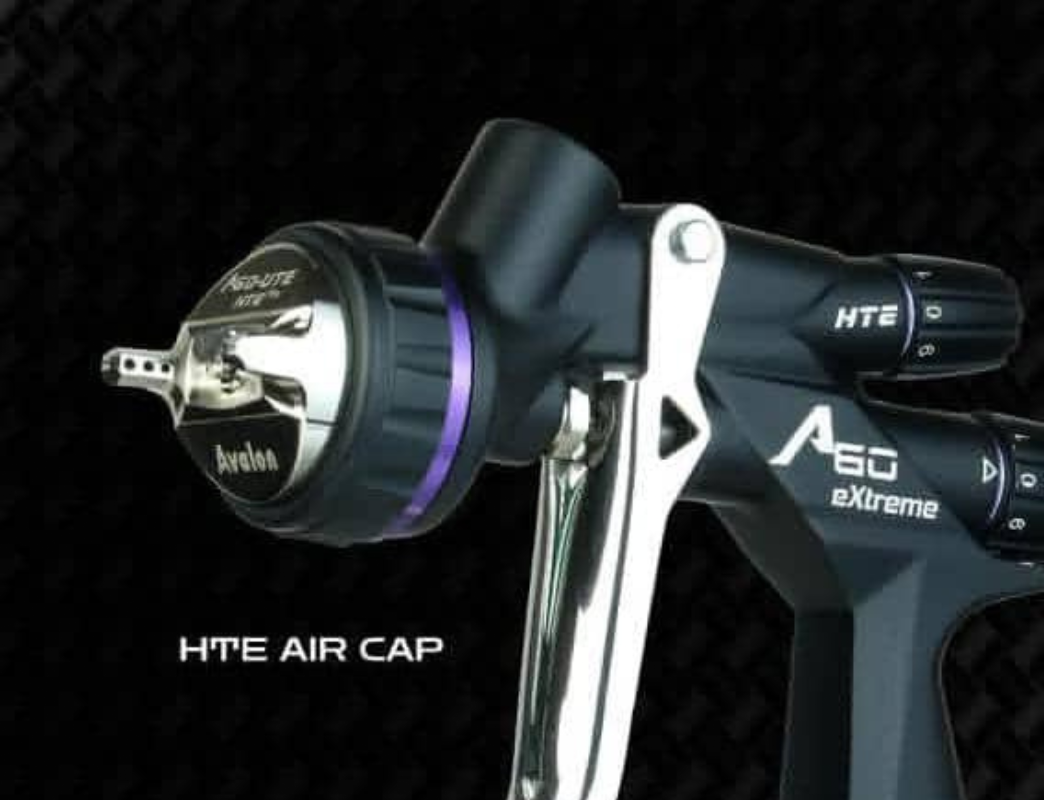

Nozzle size: 1.4 mm with UTE Pro (HTE) air cap
Inlet pressure: 2.0 kgf/cm² (29 psi)
Max air consumption: 360 l/min (12.7 cfm) – requires 3.7 kW (5 HP) compressor or above
Fluid flow rate: 290 ml/min

Pattern Performance:

Pattern length: 37 cm (14.6 in)
Pattern width: 9.5 cm (3.5 in)
Wide, uniform fan for fast coverage

Basecoat & Clearcoat Performance:

Tested in solvent basecoat (1:1) and clearcoat (2:1)
Superior high transfer efficiency (HTE) with excellent metallic orientation and smooth finish

Key Characteristics:

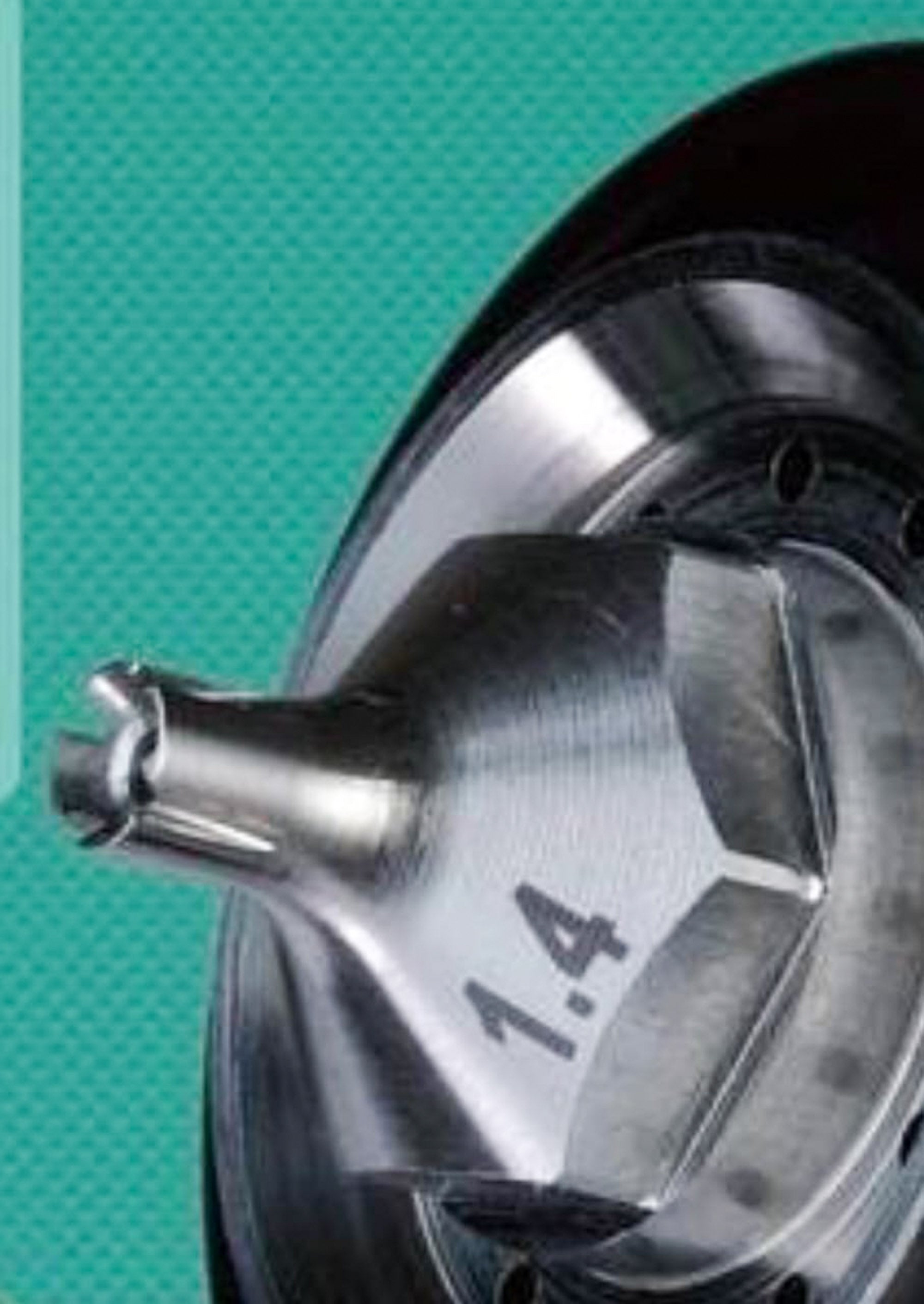

🎯 1.4 mm U Groove Tip nozzle recommended for clear coat and light primer.
🌬️ HTE spray technology focused on transfer efficiency and reduced material waste.

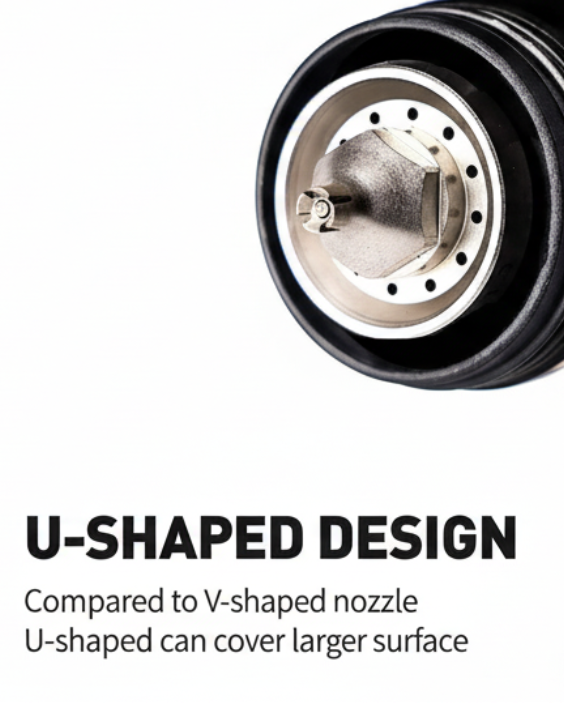

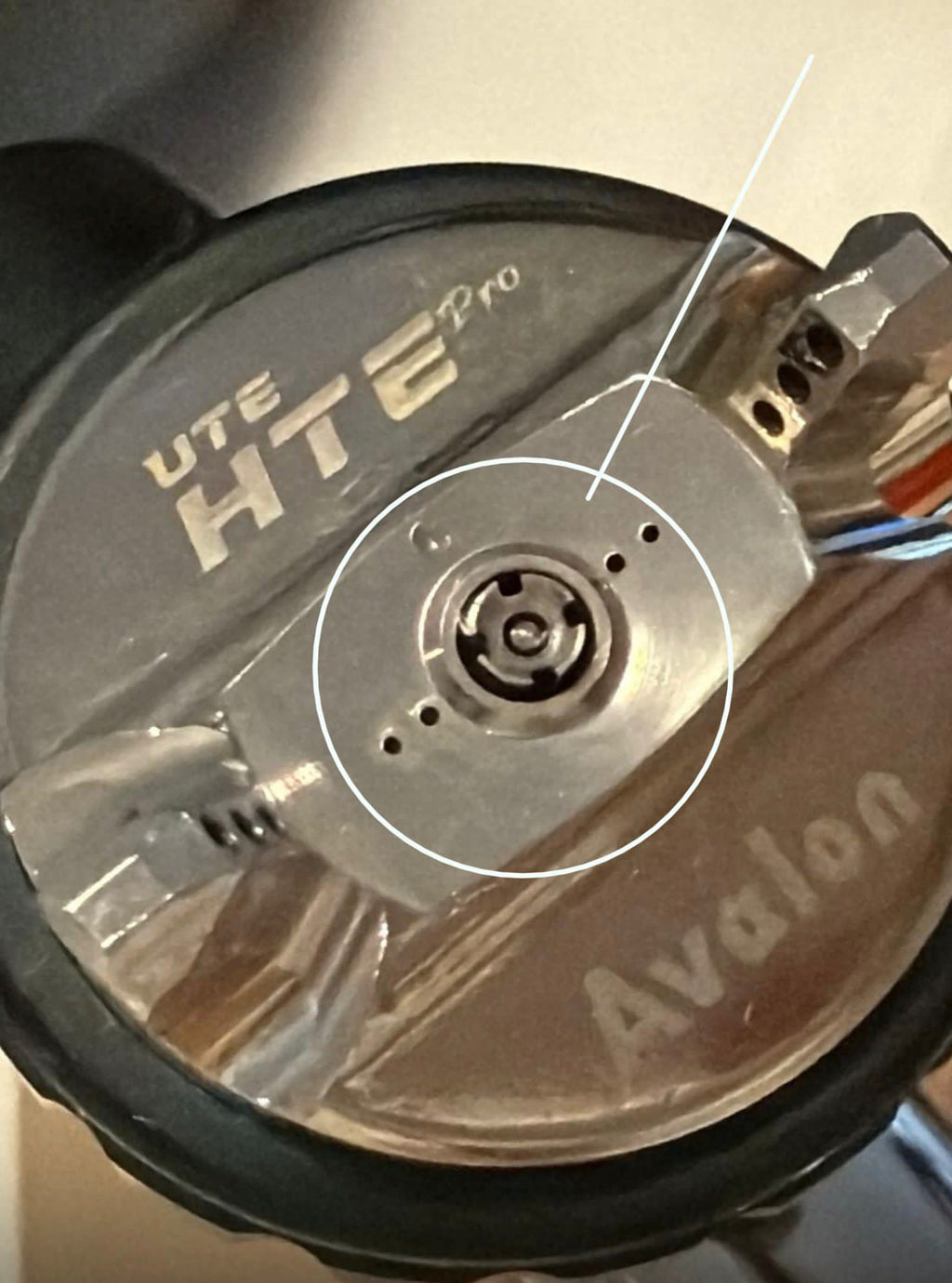

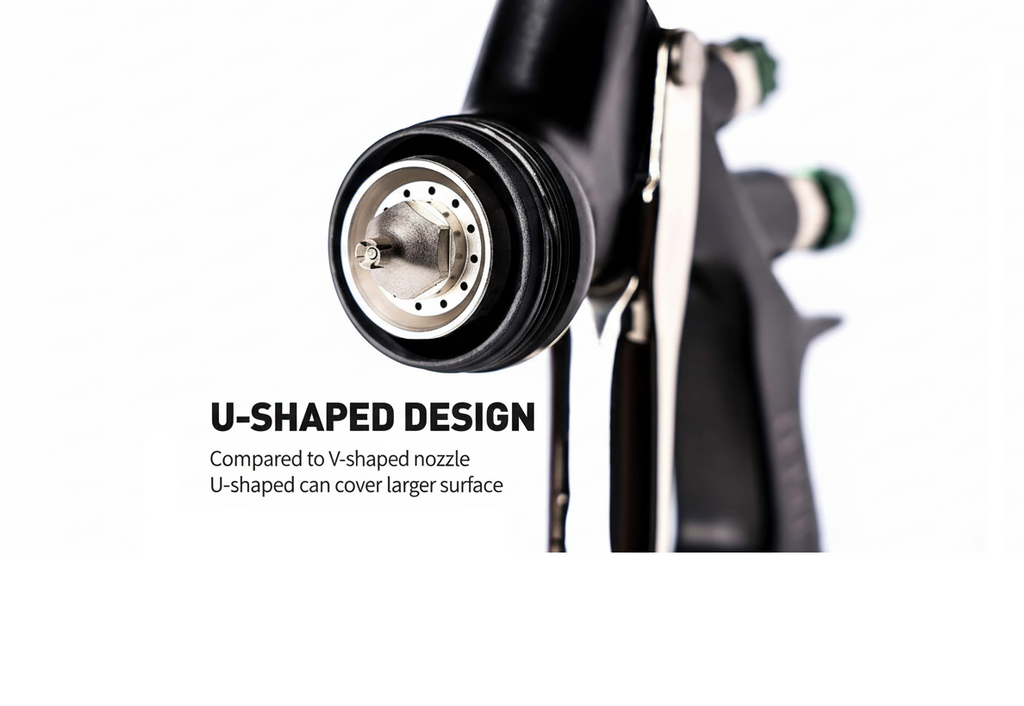

🧪 Patented U-Split tip design for finer mist and reduced bounce-back.
📏 13.8 in. spray pattern for broader, more even coverage.
⚙️ 340 L/min air consumption, equal to 12 CFM.
🛢️ 290 ml/min fluid flow for stronger delivery on clear and light primer work.
🔩 1/4" NPS air inlet and 25-29 PSI working pressure.
🥤 600 ml gravity cup included in the HTE Pro Kit.
🧰 Kit includes regulator with gauge, cleaning kit, multi-tool, spare seals, and wrench.

Technical feature	Specification	Practical benefit
Spray system	HTE	Helps improve transfer efficiency and reduce wasted material
Nozzle size	1.4 mm	Better suited to clear coat and light primer work
Recommended use	Clear coat & light primer	Targets smoother topcoats and more controlled primer application
Spray pattern	13.8 in. / 35 cm	Supports wider, more even coverage across panels
Air consumption	340 L/min / 12 CFM	Gives a clear compressor requirement for stable performance
Fluid flow	290 ml/min	Delivers enough material for smoother passes without starving the panel
Working pressure	25-29 PSI	Supports controlled atomization in refinishing applications
Air inlet	1/4" NPS	Easy compatibility with common shop air connections
Cup capacity	600 ml	Good working capacity for panel refinishing
Minimum compressor	3 HP	Useful baseline for matching the gun to shop equipment

Return Policy - Order and Relax!

We offer a 30-day return window. Items must be returned unused, in original condition, with all packaging and accessories included. Buyer is responsible for return shipping costs. Original outbound shipping is non-refundable. A 15% restocking fee may apply on non-defective returns.

For defective, damaged, or incorrect items, contact us immediately. We will provide a prepaid return label and issue a full refund or replacement (no restocking fee). So, relax, we've got you covered if you decide to return it.

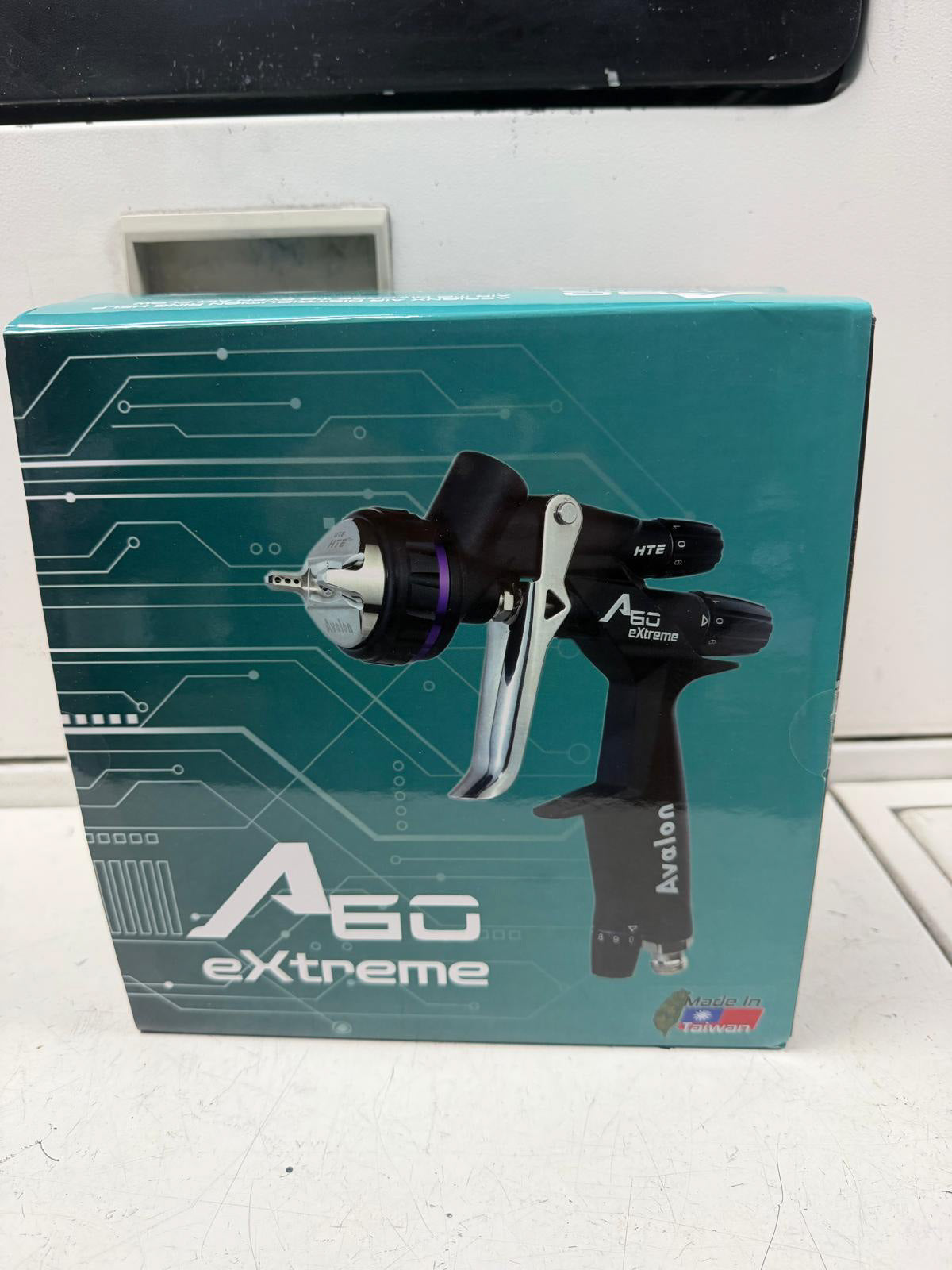

What comes in the box?

The Complete HTE Pro Kit on the AV Spray Guns product page includes the A-60 HTE spray gun, a 600 cc gravity cup, an air regulator with gauge, a cleaning kit, a multi-tool wrench, PPS adaptor. All you need in a box!

How does shipping work on AV Spray Guns?

Free Shipping within the continental USA. Orders are typically processed in 1-3 business days, estimated delivery is 3-9 business days after shipment, and tracking is sent by email.
