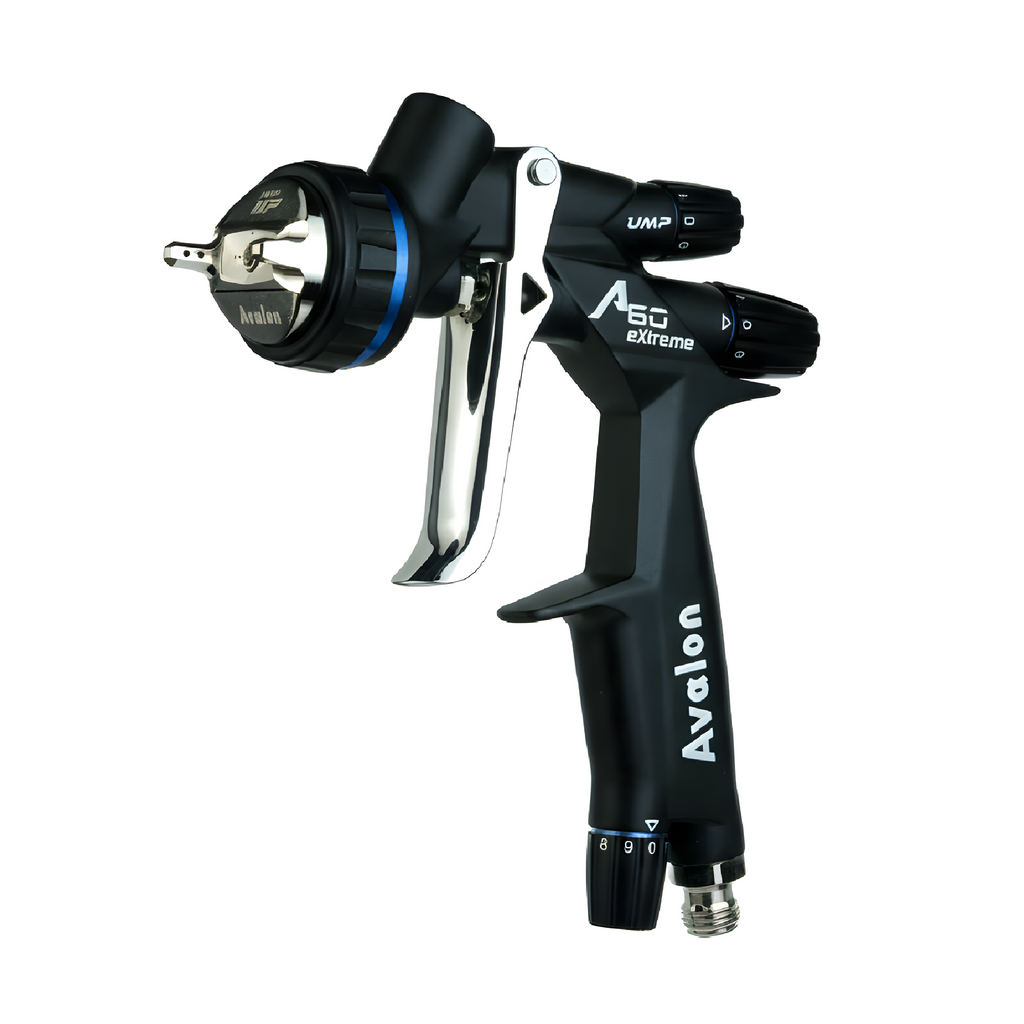

A60 eXtreme UMP 1.4 mm – Full-Size Professional Spray Gun for Fast Coverage

Taiwanese precision meets professional performance.

The A60 eXtreme UMP delivers a refined U-groove nozzle that pre-atomizes paint for a finer, more consistent fan — giving you superior control on metallics, pearls, sealers and clears with less overspray and material waste.

A clear coat job can turn frustrating fast when the gun lays material too dry, too narrow, or too uneven across the panel. The painter slows down, adjusts overlap, and still ends up chasing coverage instead of building flow. More passes follow, more product disappears, and what should feel controlled starts becoming tiring, wasteful, and difficult to trust.

Primer and medium-build work create a different headache. Thin spots force another pass, but heavier trigger time can quickly create too much texture and too much cleanup. The painter keeps trying to fix the result with technique, even though the real problem is the older setup in his hands. That is exactly where a smarter spray solution begins to matter.

Avalon A-60 - UMP eXtreme Spray Gun – U-Split Tip 1.4 mm - Main features

The Avalon A60 eXtreme UMP 1.4 mm (LVMP) is a premium full-size professional spray gun engineered for painters who need excellent material flow, superior atomization, and reliable performance on larger jobs.

Complete Professional Kit Includes:

• Air regulator
• Maintenance tools
• 200 cc gravity feed cup
• PPS adapter

Key Features:

• 🎯 1.4 mm nozzle for painters who want a strong middle ground between finish control and fuller material delivery.
• 🌬️ UMP medium-pressure design aimed at faster work and smooth results through optimized air distribution.
• 🧪 Patented U-Split tip promoted by AV Spray Guns for dual atomization, finer mist, and less bounce-back.
• 📏 13 in. pattern length on the official datatable for broader, steadier coverage on repair areas and prepared panels.
• 🧰 Complete pro kit included with cup, regulator, cleaning kit, multi-tool, and a PPS adapter.

Technical features of Avalon A-60 - UMP eXtreme Spray Gun – U-Split Tip 1.4 mm

Engineered for Performance & Comfort:

• Full-size design with 360 g (12.7 oz) weight for balanced control
• Nozzle size: 1.4 mm with UMP (LVMP) air cap
• Inlet pressure: 2.0 kgf/cm² (29 psi)
• Max air consumption: 290 l/min (10.2 cfm) – efficient on 2.2 kW (3 HP) compressors or above
• Fluid flow rate: 260 ml/min

Avalon’s official datatable lists the UMP 1.4 mm at 29 PSI inlet pressure, 20 cm spraying distance, 33 cm (13 in.) pattern length, 9.5 cm (3.7 in.) pattern width, 290 L/min (10.2 CFM) max air consumption, 260 ml/min fluid flow, and a minimum 2.2 kW (3 HP) compressor. Those figures place this setup in a very practical zone for painters who need more build and easier wet coverage without moving into the heaviest-delivery option in the range.

Pattern Performance:

• Pattern length: 33 cm (13 in)
• Pattern width: 9.5 cm (3.7 in)
• Excellent coverage and transfer efficiency

Basecoat & Clearcoat Performance:

• Tested in solvent basecoat (1:1) and clearcoat (2:1)
• Smooth, even atomization with good metallic control and high gloss

Best Suited For:

• Medium to large panels and production work
• Basecoat and clearcoat applications requiring faster coverage
• Professional painters who want high flow with controlled LVMP technology while maintaining excellent finish quality

Return Policy - Order and Relax!

We offer a 30-day return window. Items must be returned unused, in original condition, with all packaging and accessories included. Buyer is responsible for return shipping costs. Original outbound shipping is non-refundable. A 15% restocking fee may apply on non-defective returns.

For defective, damaged, or incorrect items, contact us immediately. We will provide a prepaid return label and issue a full refund or replacement (no restocking fee). So, relax, we've got you covered if you decide to return it.

Is the Avalon A-60 - UMP eXtreme Spray Gun – U-Split Tip 1.4 mm original?

Yes. We, AV Spray Guns are an authorized distributor of AVALON AIR TOOLS Co., Ltd. in the United States, manufactured in Taiwan. Spare and replacement parts are carried for long-term support.

Frequently Asked Questions (F.A.Q)

You are making a smart choice if you want a spray gun that gives you a little more material and coverage without losing control. And if you still have questions before ordering, these quick answers will help you choose with more confidence.

What air setup does it need?

Avalon’s official datatable lists 290 L/min (10.2 CFM) max air consumption and a minimum 3 HP compressor -  25–29 PSI working pressure.
