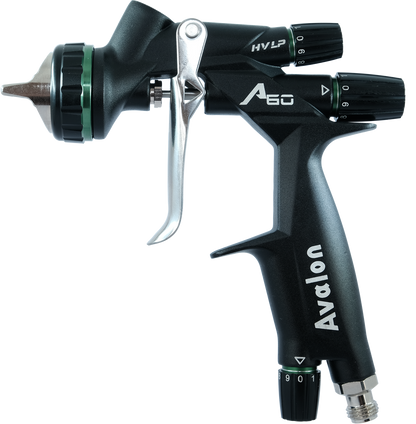

A-60 HVLP AUTOMOTIVE SPRAY GUN KIT

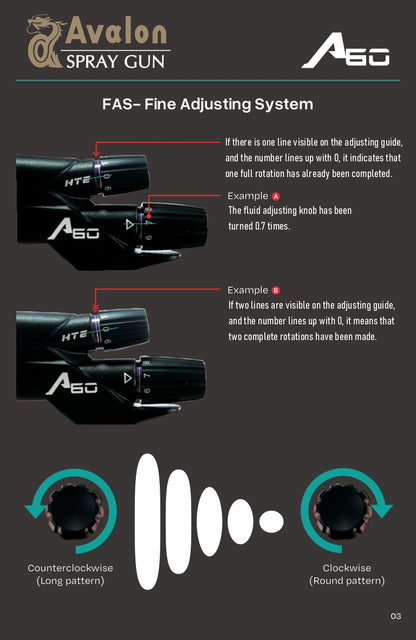

Lightweight, U shape nozzle, FAS adjusting system, Fine atomization, High-value low-pressure spray gun

The A60-HVLP is a lightweight spray gun weighing only 365 grams, designed to save paint. It features a low-pressure air cap that reduces paint bounce-back while achieving high transfer efficiency. Even with a large-diameter nozzle, it can still deliver adequate paint savings. Additionally, with Avalon’s patented U-shaped nozzle, the spray gun produces a fine atomization effect thanks to its dual-atomization technology.

Avalon Spray Guns stand out for their innovative U-shaped patented nozzle, which delivers an excellent atomization effect. This advanced design ensures that even with a large-diameter nozzle, the spray gun can achieve the precision and finesse typically associated with smaller nozzles.
The result is a versatile tool that combines efficiency with high-quality finishes, making it ideal for various applications.

Max Air Consumption 435 l/min. - 15.4 cfm
Inlet Pressure 2.0 kgs. -  29 psi

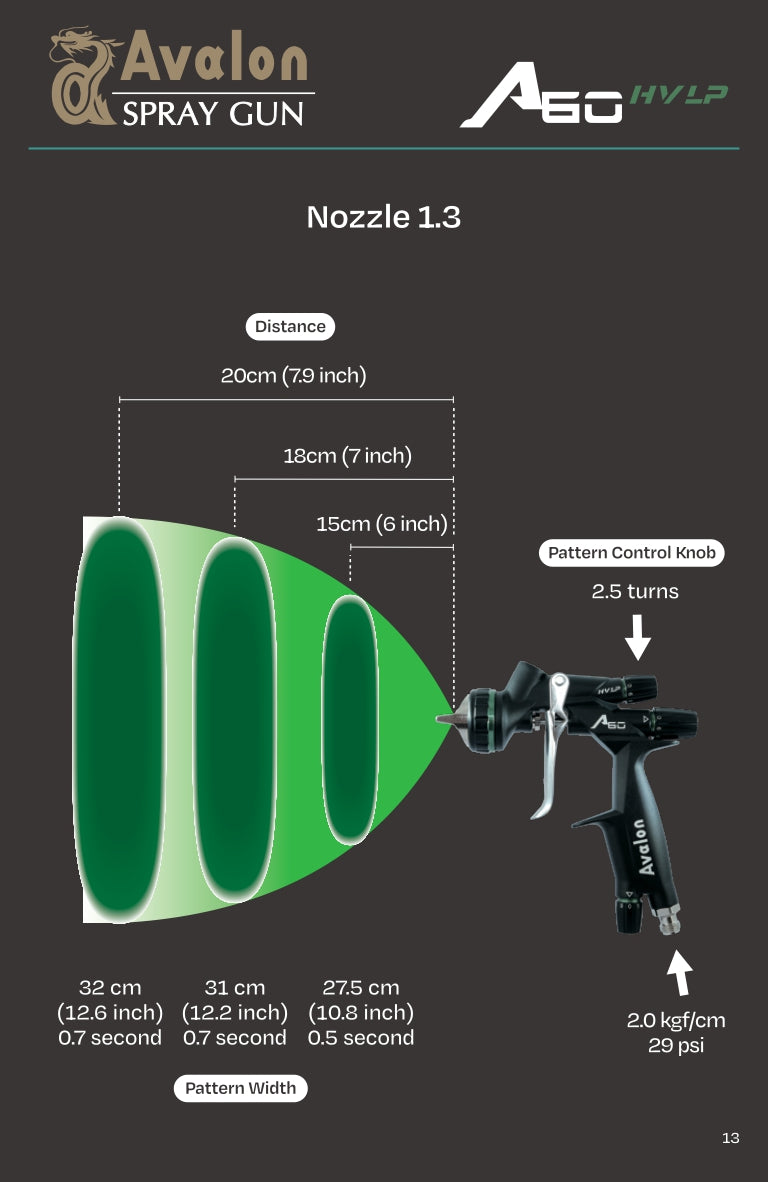

Pattern Length 35 cm. - 13.8 in
Pattern Width  8cm. -  3.2 in
Distance 20 cm.  -  7.9 in
Air Compresor - 3.7 kW (5HP)
Fluid Flow Rate 230 ml/min  1.3 Nozzle - 260  1.4 Nozzle

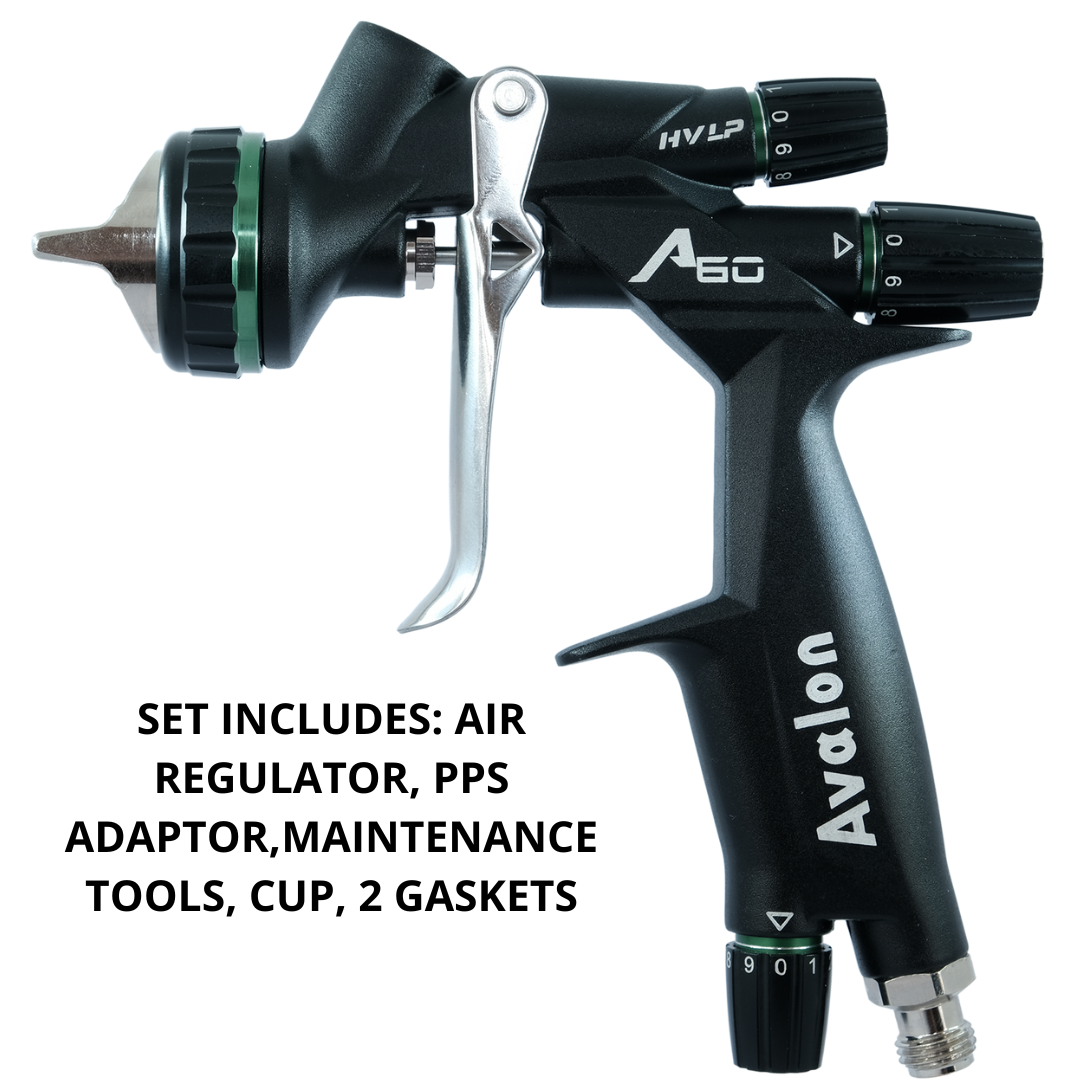

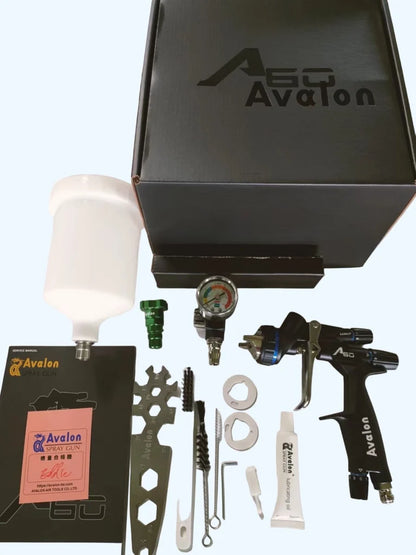

Kit contains: Service/maintenance parts & tools/brushes/oil/Cup/Adapter/ Air regulator

Weight: Only 365 grams

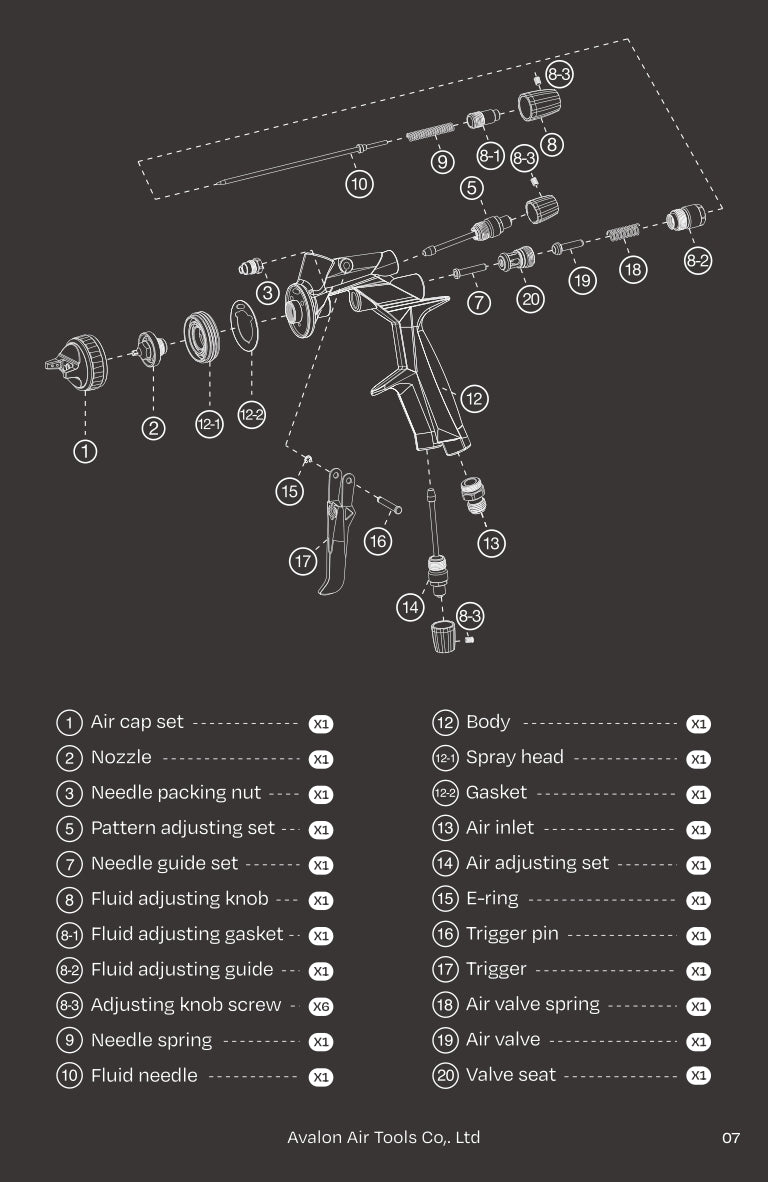

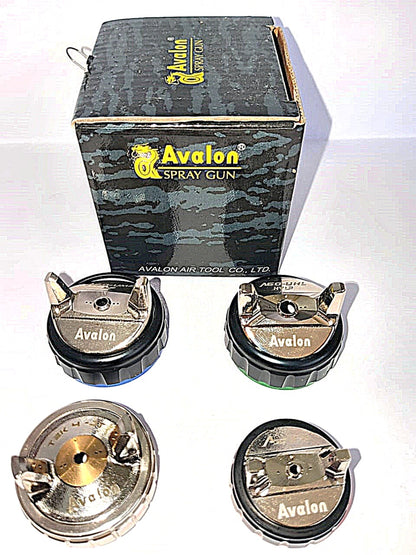

Spare Parts / Nozzles/Needles available. Contact us for more info
