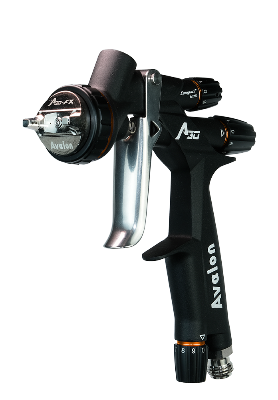

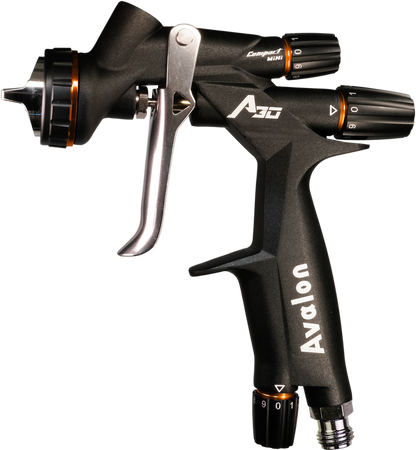

A-30 Mini/Compact Spray Gun Kit

Super lightweight, Compact, FAS adjusting system, easy to use, low air consumption.

The A30 touch-up spray gun is incredibly convenient for painting small objects. The 1.2 nozzle's long spray pattern is perfect for painting door panels or performing bumper touch-ups. The grip is extremely comfortable, so your hand won't feel fatigued even after extended use.

The A30 Mini Spray Gun is specially designed for small area touch-ups, emphasizing convenience and ease of use, making it ideal for various minor spray-painting tasks.

Key Features:

1. Low Air Consumption:
Energy Efficient: The features an optimized design that reduces air consumption, achieving energy efficiency and lowering operating costs.

2. Even Spray Pattern:

Fine Spray: The high-precision nozzle design ensures an even spray suitable for detailed touch-ups.

Stable Output: Consistent spray pressure provides uniform results, avoiding issues with uneven color during the spraying process.

3. Ultra-Lightweight:

Lightweight Design: Made from lightweight materials, the overall weight is minimal, reducing user fatigue and making it suitable for extended operation.

Comfortable Grip: The ergonomically designed handle ensures a comfortable grip, with minimal hand strain during use.

4. Easy to Operate:

Simple Controls: The controls are straightforward to use, making it user-friendly even for beginners.

Easy to Clean: The nozzle and other components are easy to disassemble and clean, simplifying maintenance and extending the lifespan.

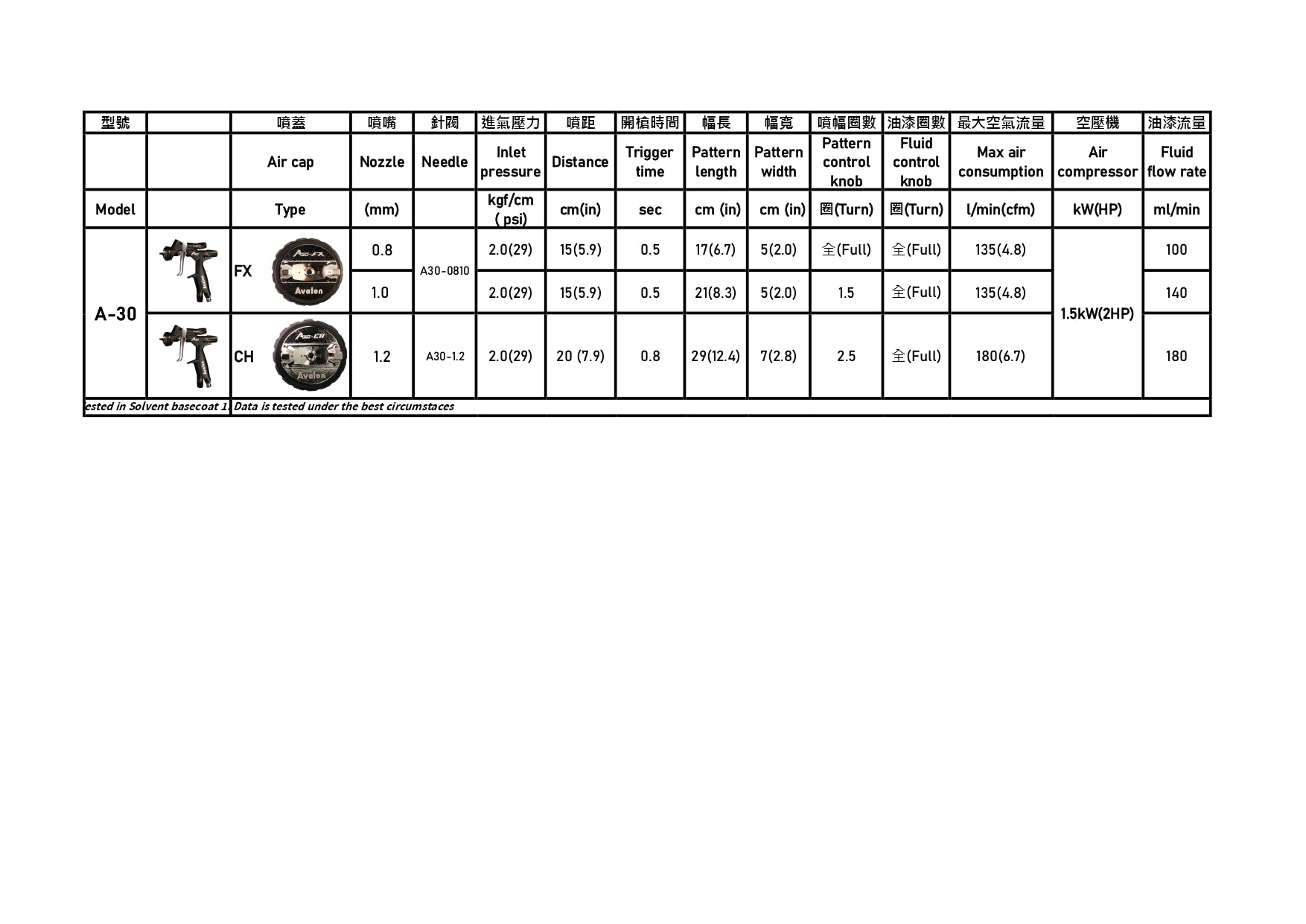

Max Air Consumption Nozzles:

• 0.8 - 135l/min (4.8cfm)
• 1.0 - 135l/min (4.8cfm)
•  1.2 - 180l/min (6.7cfm)

Inlet Pressure 2.0 kgs. -  29 psi

Pattern Length Nozzles:

• 0.8  17cm (6.7in).
• 1.0.  21cm (8.3in).
• 1.2.  29cm (12.4in)

Pattern Width  Nozzles:

• 0.8. 5cm (2.0in).
• 1.0. 5cm (2.0in).
• 1.2. 7cm ( 2.8in)

Distance Nozzles:

•  0.8  15cm(5.9in).
• 1.0. 15cm (5.9in).
• 1.2. 20cm (7.9in)

- Air Compresor  1.5 kW (2HP)

Fluid Flow Rate Nozzles:

•  0.8  Nozzle 100 ml/min
• 1.0 Nozzle - 140 ml/min
• 1.2 Nozzle - 180 ml/min

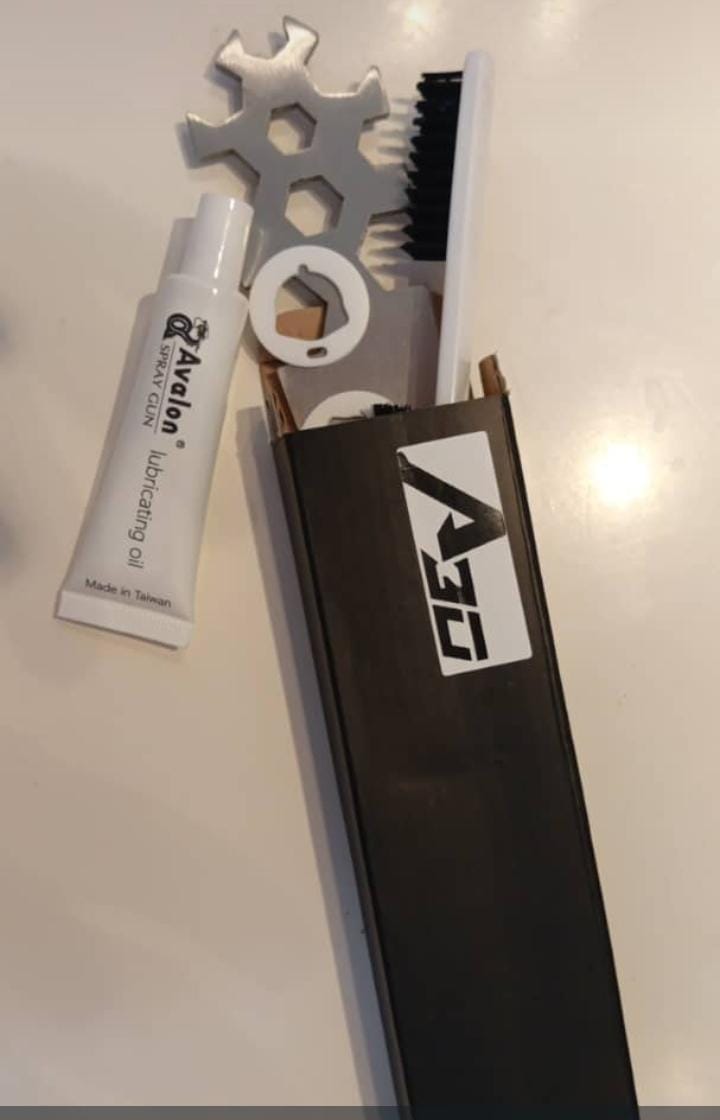

Kit contains: Service/maintenance parts & tools/brushes/oil/Cup/Adapter/ Air regulator

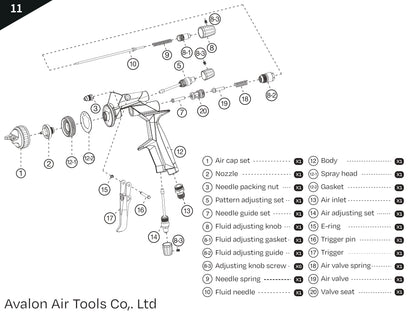

Spare Parts / Nozzles/Needles available.
