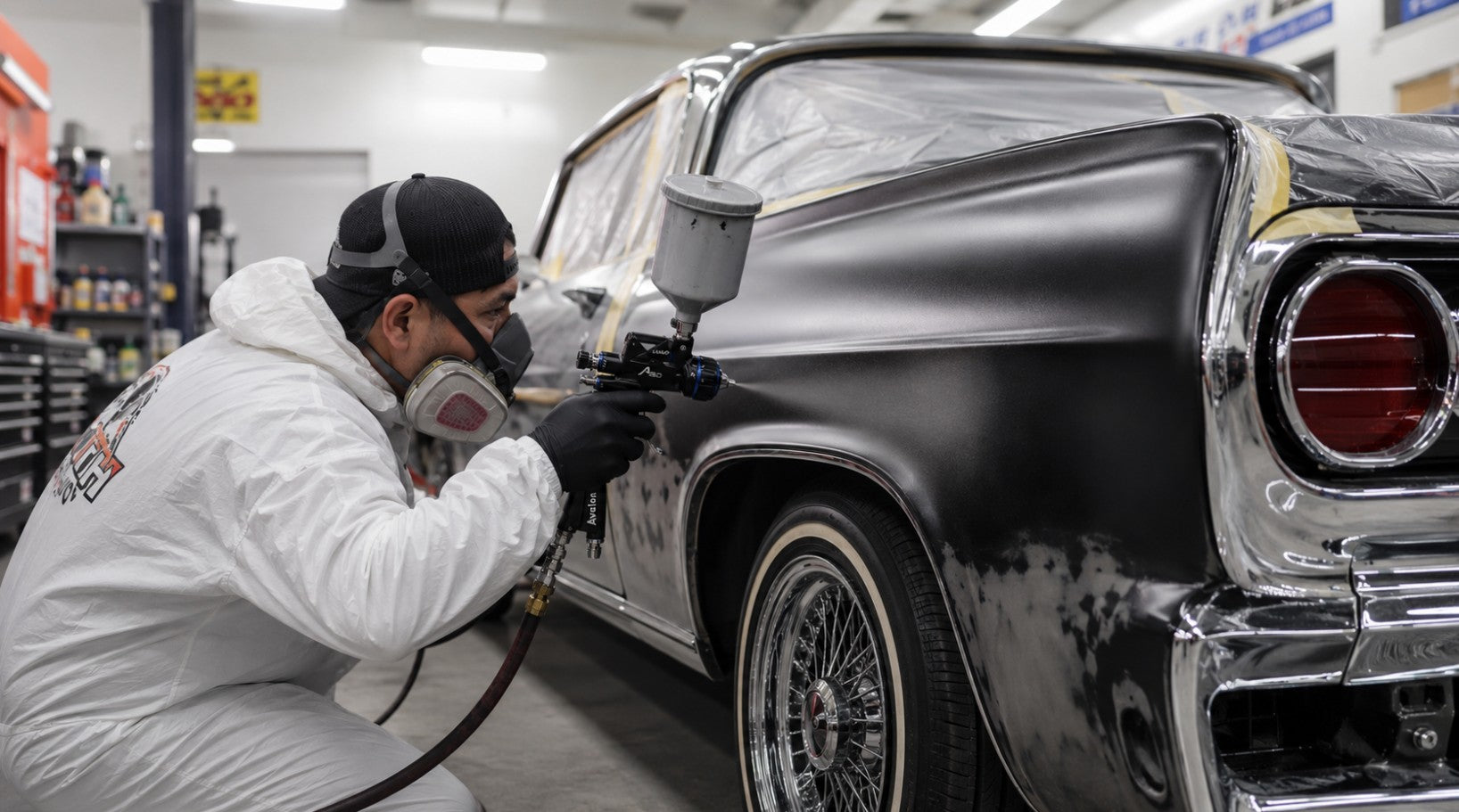

A painter sets a fender on the stand, mixes basecoat, checks the regulator, and knows the first pass will show whether the tool is helping or fighting the job. The best hvlp spray gun is not chosen by name alone; it must give stable atomization, predictable fan shape, and enough control to keep clearcoat smooth without filling the booth with wasted material.
Why HVLP control matters on automotive panels today?
HVLP suits refinish work because it uses high air volume with lower pressure at the cap, helping more coating land on the panel and reducing bounce-back around edges. That is why the best hvlp spray gun usually appeals to painters who want cleaner transfer, softer fan behavior, and better control on curved body lines, bumpers, doors, and quarter panels.
Good results still depend on technique. Gun distance, overlap, trigger timing, reducer choice, shop temperature, and air supply can change the finish even with a premium tool. A helpful overview of HVLP transfer habits explains why painter setup and application habits remain tied to how much coating actually reaches the surface.
Setup factors that protect final clearcoat quality
Before choosing the best hvlp spray gun, check the air system that will feed it. HVLP can demand more air volume than some small compressors provide, so a weak supply may cause a narrow fan, dry edges, or uneven atomization. Shops also need clean filtration, correct hose size, and a regulator that is read with the trigger fully pulled.
For daily refinishing, the strongest setup usually includes:
- A compressor that can support the gun’s required CFM during long passes.
- Clean, dry air with filtration placed where moisture is controlled.
- A nozzle size matched to basecoat, clearcoat, light primer, or sealer.
- A spray-out routine that checks fan shape before the panel is coated.
Painters comparing cleaner refinish work should separate basecoat control from clearcoat flow. A 1.3 mm HVLP setup often feels precise for base and clear, while a 1.4 mm setup gives a fuller pass for clearcoat and light primer. That distinction helps narrow the best hvlp spray gun without buying a tool that feels too slow or too heavy in real booth use.
The table below helps connect common refinish needs with the Avalon HVLP direction that fits each job. It is useful when the goal is to choose by coating behavior instead of choosing only by price, nozzle label, or habit.
| Refinish need | Useful HVLP direction | Practical result |
|---|---|---|
| Basecoat and clear control | Avalon A60 eXtreme HVLP 1.3 mm | Cleaner fan control on color and clear |
| Clearcoat and light primer | Avalon A-60 HVLP eXtreme 1.4 mm | Fuller flow with lower overspray behavior |
| Metallics and pearls | Fine atomization and stable overlap | Less striping risk on difficult colors |
Avalon HVLP gun choice for cleaner clearcoat panels
For clearcoat, light primer, and fuller coverage with reduced overspray behavior, the Avalon A-60 HVLP eXtreme 1.4 mm is the recommended choice. It fits the buyer looking for the best hvlp spray gun when a wide, even fan and controlled material delivery matter on larger panels, bumper covers, and blend areas.
Use this order before making the final choice:
- Confirm the coating maker’s suggested nozzle range.
- Check that the compressor can hold the needed air volume.
- Test fan width and edge softness on masking paper.
- Adjust fluid flow before increasing air pressure.
- Clean the air cap and fluid tip after each session.
This model also makes sense for painters who want HVLP behavior but do not want a sluggish pass. The 1.4 mm setup supports clearcoat flow, while Avalon’s U-Split Tip design is built to improve atomization and reduce bounce-back. Paired with booth-level spraying habits, the best hvlp spray gun becomes part of a repeatable system, not a standalone shortcut.
Why AV Spray Guns supports HVLP buyers after every sale?
At AV Spray Guns, we focus on Avalon spray guns that fit real refinishing work: A-60 HVLP, HTE, MP, and compact A30 options for tighter areas. We recommend an HVLP spray gun only when it matches the coating, compressor, panel size, and finish goal. That approach keeps the purchase practical for shops, mobile painters, restoration builders, and serious DIY users who need reliable support after checkout.
- We keep the recommendation centered on Avalon models available through our store.
- We help match nozzle size, air demand, and coating use before the purchase.
- We support buyers with parts, accessories, and practical setup guidance.
- We treat the gun as part of the whole refinish system, not as a generic tool.
Our goal is simple: help painters choose equipment that feels right in the hand and behaves correctly on the panel. For many buyers, the best hvlp spray gun will be the Avalon A-60 HVLP eXtreme 1.4 mm when clearcoat coverage, lower overspray behavior, and steady control are priorities. When basecoat precision is the main need, the Avalon A60 eXtreme HVLP 1.3 mm remains the tighter choice.
